Understanding On-Board Chargers: The Heart of Electric Vehicle Charging

As electric vehicles (EVs) become more popular, understanding the technology behind them is essential. One critical component in this ecosystem is the on-board charger (OBC). In this blog, we'll delve into what on-board chargers are, how they work, and their significance in the EV landscape.

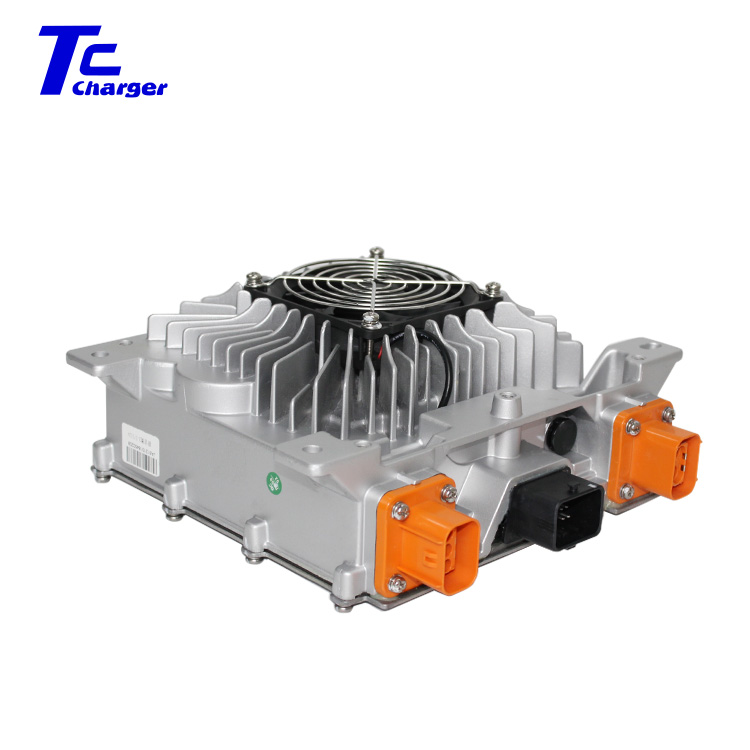

What is an On-Board Charger?

An on-board charger is an integral part of electric vehicles that converts alternating current (AC) from the grid into direct current (DC) to charge the vehicle's battery. This component ensures that EVs can be charged efficiently and safely, allowing drivers to power up their vehicles from various charging stations and home outlets.

How Do On-Board Chargers Work?

1. AC to DC Conversion: When an EV is plugged into a charging station, the on-board charger takes the AC power from the grid and converts it into DC power. This DC power is what the vehicle’s battery requires for charging.

2. Voltage Regulation: On-board chargers manage the voltage levels to ensure that the battery is charged at the correct rate. They help prevent overcharging, which can damage the battery and reduce its lifespan.

3. Communication with Charging Stations: On-board chargers communicate with charging infrastructure to negotiate the optimal charging rate and ensure safety during the charging process.

Types of On-Board Chargers

On-board chargers vary in power output and efficiency. Here are some common types:

• Level 1 Chargers: These typically provide 1.4 to 2.4 kW of power and are suitable for home charging using standard outlets. They are the slowest charging option but are convenient for overnight charging.

• Level 2 Chargers: With power outputs ranging from 3.7 to 22 kW, Level 2 chargers are commonly found in public charging stations and can charge an EV much faster than Level 1 chargers.

• DC Fast Chargers: While not on-board chargers themselves, they work in conjunction with OBCs by providing high-voltage DC power directly to the vehicle’s battery, bypassing the on-board charger for rapid charging.

Importance of On-Board Chargers in the EV Ecosystem

1. Versatility: On-board chargers enable EVs to be charged from various sources, including home outlets and public charging stations, making EVs more accessible and convenient for users.

2. Battery Health Management: By regulating the charging process, on-board chargers play a crucial role in maintaining battery health, thereby extending the lifespan of EV batteries.

3. Cost Efficiency: Efficient charging through on-board chargers can help reduce electricity costs for EV owners, especially if they charge during off-peak hours.

Future Trends in On-Board Charger Technology

As the EV market continues to evolve, on-board charger technology is also advancing. Here are some trends to watch:

• Higher Power Outputs: Future on-board chargers are likely to support higher charging speeds, enabling quicker charge times for users.

• Smart Charging Capabilities: Integration with smart grids and IoT devices will allow for more intelligent charging solutions, optimizing energy use and cost.

• Vehicle-to-Grid (V2G) Technology: On-board chargers may facilitate bi-directional charging, allowing EVs to supply power back to the grid during peak demand times.

Conclusion

On-board chargers are a vital component of the electric vehicle ecosystem, enabling efficient and safe charging while contributing to the longevity of EV batteries. As technology progresses, the role of on-board chargers will become even more significant, helping to drive the adoption of electric vehicles worldwide. Understanding this technology is essential for anyone looking to make the switch to electric driving.

Whether you’re a seasoned EV owner or considering your first electric vehicle, knowing about on-board chargers will help you make informed decisions and maximize your EV experience.
