North American Charging Standards for Electric Vehicles: A Comprehensive Guide

Oct 21,2024 | TCcharger


As electric vehicles (EVs) become more common on North American roads, understanding the various charging standards is essential for both current and prospective EV owners. The diversity of charging technologies can be confusing, so this guide aims to break down the main North American charging standards to help you make informed decisions and maximize your EV ownership experience.



The Main Charging Standards

There are primarily three EV charging standards in North America: Level 1, Level 2, and Level 3 (DC Fast Charging). Each standard has different power outputs and charging speeds, catering to different needs and use cases.
  1. Level 1 Charging: Basic and Home-Friendly
    • Power Output: Typically 120 volts (up to 1.4 kW)
    • Charging Speed: 2 to 5 miles of range per hour of charging
    • Use Case: Home charging using a standard household outlet
    • Advantages: No special equipment needed, cost-effective
    • Disadvantages: Slow charging, best suited for overnight or emergency charging
  2. Level 2 Charging: Versatile and Faster
    • Power Output: 240 volts (up to 19.2 kW)
    • Charging Speed: 10 to 60 miles of range per hour of charging
    • Use Case: Home, public charging stations, workplaces
    • Advantages: Faster charging compared to Level 1, widely available
    • Disadvantages: Requires installation of a dedicated charging station or outlet
  3. Level 3 Charging (DC Fast Charging): Rapid and Efficient
    • Power Output: 200 to 600 volts (up to 350 kW)
    • Charging Speed: 60 to 100 miles of range per 20 minutes of charging
    • Use Case: Highway rest stops, commercial areas, public charging stations
    • Advantages: Extremely fast charging, ideal for long trips
    • Disadvantages: Expensive to install and use, not suitable for home use



Common Connectors and Protocols

Various connectors and protocols are used for different levels of charging, each with its unique
specifications and compatibilities. Here's a closer look at the most common connectors you'll encounter in North America:
  1. J1772 Connector
    • Compatibility: Level 1 and Level 2 charging
    • Usage: Most electric vehicles in North America
    • Key Features: Standardized connector for slow to moderate charging speeds
  2. Tesla Connector
    • Compatibility: Level 1, Level 2 (Tesla destination chargers), and proprietary DC fast charging (Superchargers)
    • Usage: Exclusively for Tesla vehicles, although adapters are available for other EVs
    • Key Features: Sleek design, integrated with Tesla's robust Supercharger network
  3. CHAdeMO Connector
    • Compatibility: DC fast charging
    • Usage: Mostly used by Japanese EVs like Nissan Leaf
    • Key Features: High power output, possibility of V2G (vehicle-to-grid) integration
  4. CCS (Combined Charging System) Connector
    • Compatibility: Level 2 and DC fast charging
    • Usage: Widely adopted by many automakers including BMW, Chevrolet, Volkswagen, and others
    • Key Features: Dual capability for AC and DC charging, increasing in popularity

Network Providers

Several network providers offer EV charging stations across North America. Here are the major ones you should know:

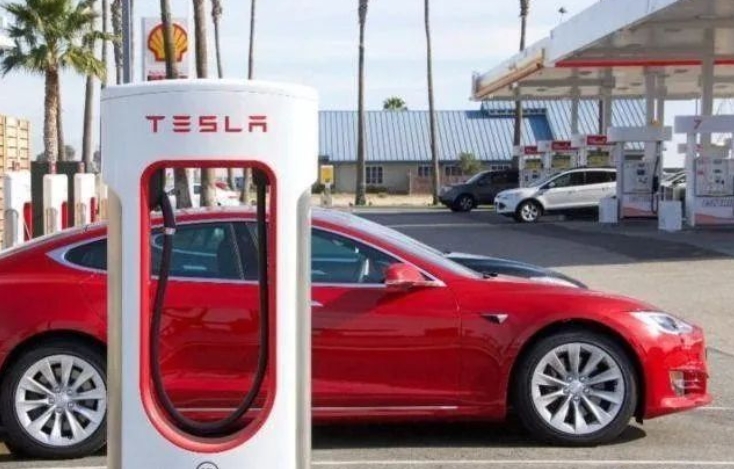

  1. Tesla Supercharger Network
    • Proprietary to Tesla vehicles
    • Wide coverage with fast charging speeds
  2. Electrify America
    • Serving various EV brands
    • Focus on high-speed DC fast charging
  3. ChargePoint
    • Extensive network of Level 2 chargers
    • Flexible access through membership or pay-as-you-go
  4. EVgo
    • High-speed DC fast chargers
    • Located in convenient urban areas and along highways

The Future of Charging Standards

With the continuous advancement in EV technology, charging standards will also evolve. Key trends to watch for include:
  1. Ultra-Fast Charging: Efforts are underway to push charging speeds even higher, with the potential for charging up to 80% in less than 10 minutes. Several manufacturers are developing ultra-fast charging stations that can deliver power outputs of 350 kW and higher. This will significantly reduce the downtime for charging, making long-distance travel more convenient for EV owners.
  2. Wireless Charging: Inductive charging technology is being explored as a future option to eliminate the need for plugging in. Wireless charging pads embedded in roads or in parking spaces could charge vehicles automatically, enhancing user convenience and reducing wear and tear on connectors.
  3. Vehicle-to-Grid (V2G) Technology: V2G allows electric vehicles to not only draw power from the grid but also supply it back. This can help stabilize the power grid, especially during peak demand periods, and provides an additional revenue stream for EV owners.
  4. Standardization of Connectors: Efforts are ongoing to standardize charging connectors and protocols globally. This would simplify the charging process for EV owners traveling internationally and reduce manufacturing complexities for automakers.



Tips for EV Owners

  1. Plan Your Trips: Before embarking on long trips, plan your route with charging station stops in mind. Use apps and online maps from network providers to find the nearest charging stations.
  2. Home Charging Setup: Invest in a Level 2 home charging station to take advantage of faster charging times. Consult a licensed electrician for installation.
  3. Membership Benefits: Consider joining charging networks that offer membership plans. These often come with benefits such as reduced rates and access to a large number of charging stations.
  4. Stay Informed: Keep up with the latest developments in EV technology and charging infrastructure. This will help you make informed decisions and take full advantage of new advancements.



Conclusion

Understanding the North American EV charging standards is crucial for making the most of your electric vehicle. Whether you're charging at home, at work, or on the go, knowing the different levels, connectors, and network providers will enhance your EV experience. As the technology evolves, expect even greater convenience and efficiency in charging your electric vehicle.
