Mastering the Art of Using an On-Board Charger for Your Electric Vehicle

Aug 07,2023 | TCcharger

As the world rapidly transitions towards sustainable transportation, electric vehicles (EVs) have emerged as a leading solution to reduce carbon emissions and combat climate change. One critical component that facilitates the smooth functioning of an electric vehicle is the on-board charger (OBC). In this blog, we will guide you through the process of using an on-board charger to charge your EV, empowering you to embrace the convenience and environmental benefits of electric mobility.

**Understanding the On-Board Charger**

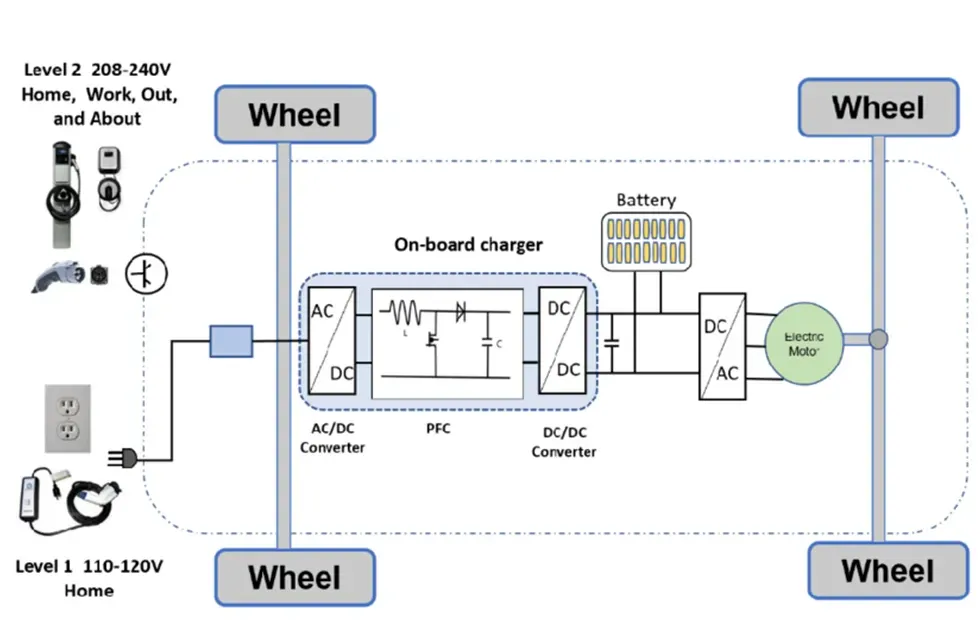

Before diving into the usage, let's grasp the concept of an on-board charger. The OBC is an essential component integrated into the electric vehicle, responsible for converting the AC power from an external charging source into the DC power required to charge the EV's battery pack. This on-board charging system allows you to recharge your EV without the need for external charging equipment.

**Step-by-Step Guide to Using an On-Board Charger**

**1. Locate the Charging Port:** In your electric vehicle, find the charging port, which is usually located on one of the vehicle's sides or at the front or rear. The charging port may have a cover that you need to open to access the socket.

**2. Check Compatibility:** Before connecting the charger, ensure that the on-board charger is compatible with the power source you are using. Confirm that the voltage and current requirements of the OBC match the charging outlet.

**3. Plug In the Charger:** Take the charging cable provided with your electric vehicle and insert the plug into the charging port. Make sure the connection is secure.

**4. Connect to Power Source:** On the other end of the charging cable, plug it into the power source, such as a charging station or a wall outlet. Ensure that the power source is turned on and supplying electricity.

**5. Charging Indicators:** Most electric vehicles have a dashboard display or LED lights near the charging port that indicates the charging status. Once connected, the EV's charging system will start communicating with the charging station or power source.

**6. Charging Progress:** The charging process may vary depending on the battery's current state of charge and the charging power of the OBC. Typically, the charging process progresses in stages, with the charging speed slowing down as the battery nears full capacity.

**7. Unplug and Store the Cable:** When the charging is complete, the on-board charger or the charging station will indicate that the process is finished. Unplug the charging cable from both the vehicle and the power source, and store it securely in your EV for future use.


Using an on-board charger is a straightforward process that allows you to charge your electric vehicle with ease and convenience. As electric vehicle infrastructure continues to grow, charging your EV will become even more accessible and efficient. Embrace the power of on-board chargers and contribute to a cleaner and greener future by driving electric. With each charging session, you become an active participant in the global movement towards sustainable transportation. So, plug in, charge up, and drive forward into a cleaner and more sustainable future!
