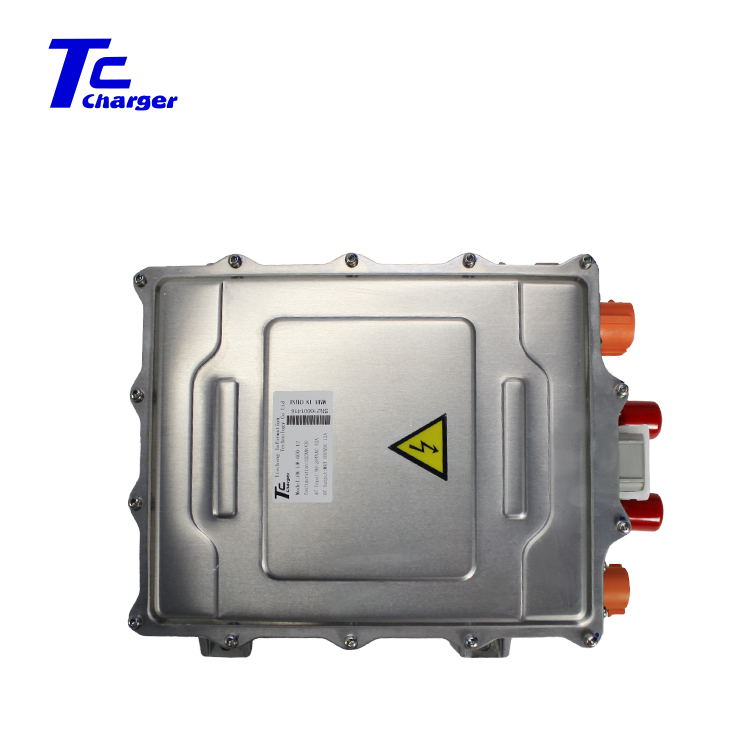

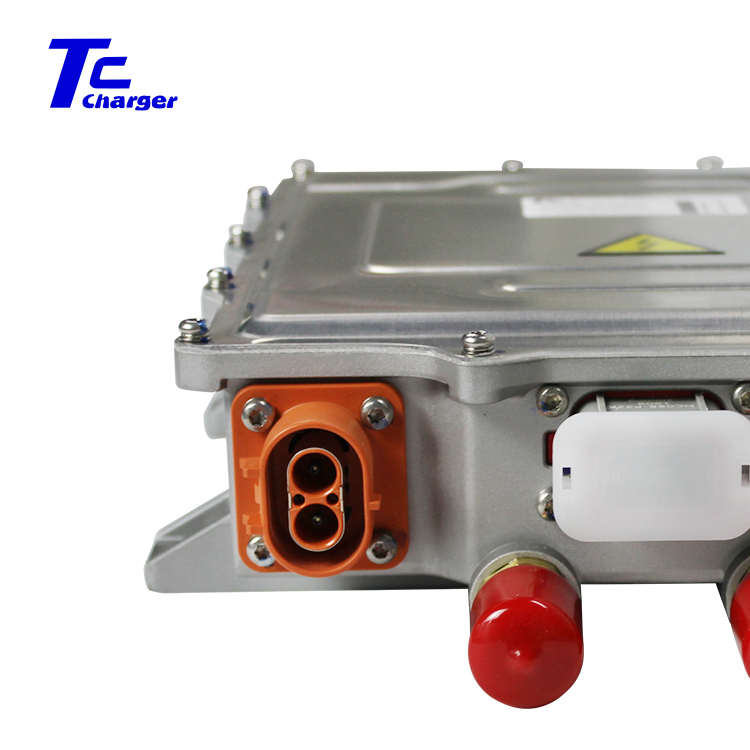

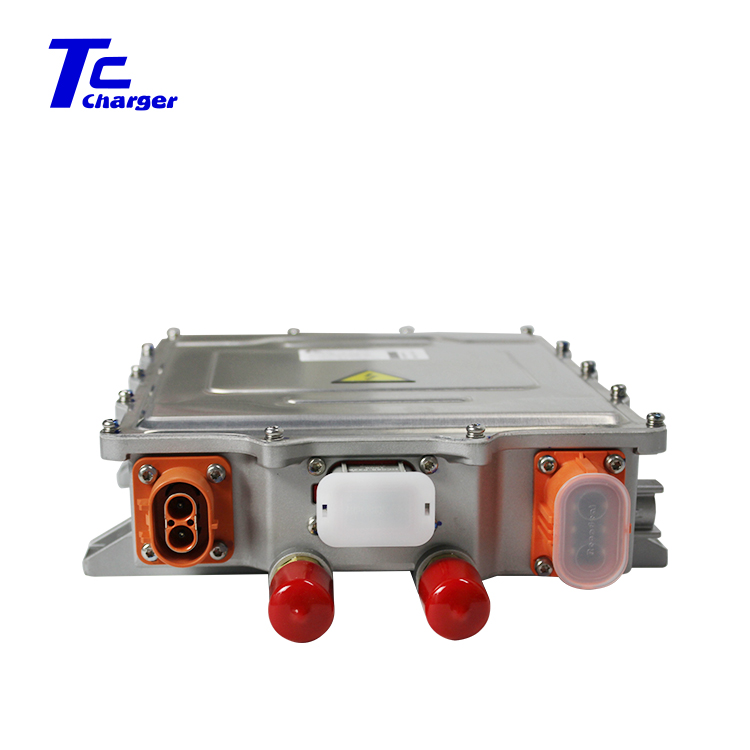

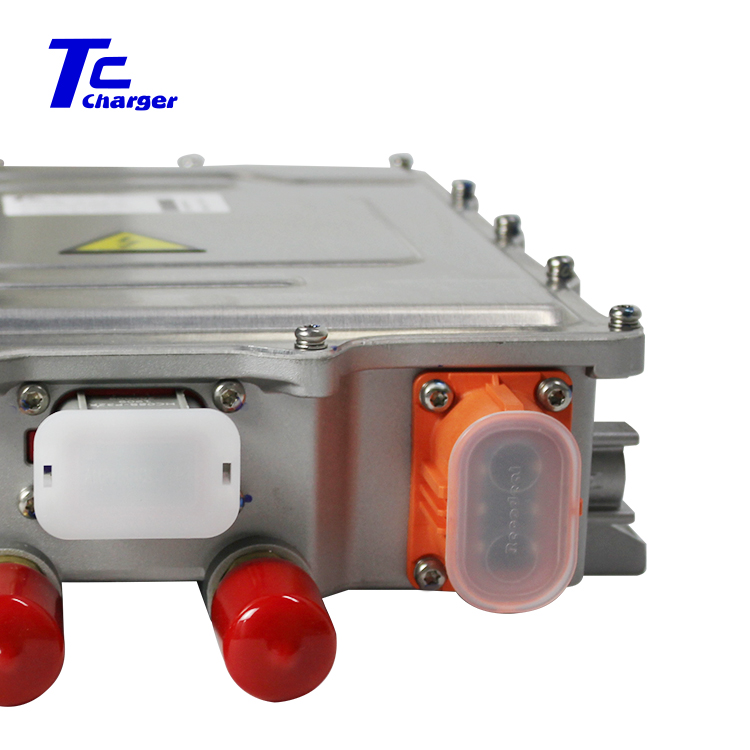

4th Generation 6.6KW HK-LW-312-20 OBC EV Chargers
Price Excluding Tax:
$900.00 USD
$0.00 USD
Model
HK-LW-312-20
Output Voltage/Output Current
312V/20A
Output Voltage Range
200~450V
Output power
6600W@220VAC 3300W@110VAC
Select Baud Rates
250K
500K
Quantity
Only 10000 left
Volume Pricing
Quantity
Price
1+
$900.00 USD each
Support Wholesale Customized
Worldwide Shipping
Carbon Neutral
Secure Payments

Basic Specification:

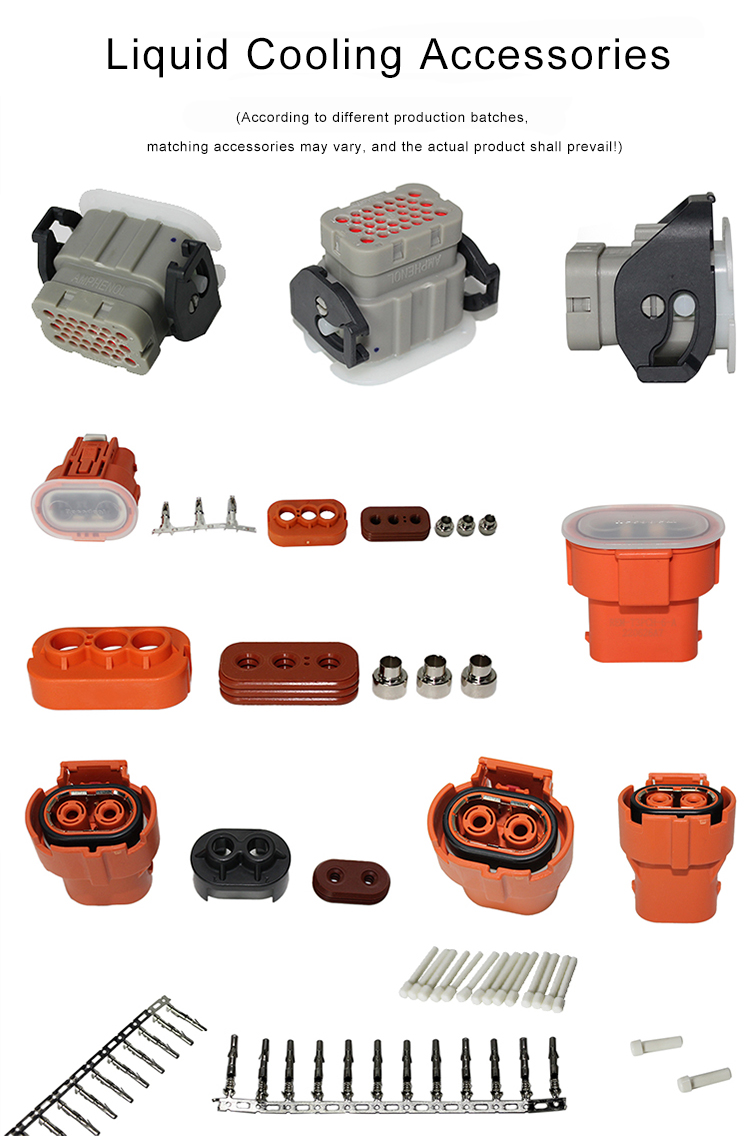

Accessories: According to different production batches, matching accessories may vary, and the actual product shall prevail!(Any questions please contact Fancy@tiechengcharger.com

1. Up to 95% power efficiency and more than 93% Full Load Efficiency
2. Wide input voltage range AC90V~AC264V 45~65 Hz available for worldwide requirements, convenient for electric-network fluctuation and vehicle exportation.
3. Intelligent temperature compensation function in the charging process, preventing damage to the battery caused by charge-off or charge due, greatly extending the lifespan of the battery.
4. Fully-sealed and water-proof, protection class IP67(Effective against dust tight and Protection against Immersion, up to 1 m depth).
5.Operation temperature:- 40℃~85℃;Storage temperature:- 55℃~85℃;Mechanical impact and vibration grade:QC/T 895-2011,Automotive-grade seismic rating.
6. Temperature control with the built-in heat-sensing device and automatic recovery through thermal protection.
7. Multi-safety protection functions.
8. LED charge status indication with diagnosing support function.
9. Available for various kinds of batteries like LiFePO4, Lithium battery, etc., Flexible and programmable in charging mode. Equipped with Enable Control(Automatic Control) or CAN communication interface to realize real-time communication with BMS for options.
10. Input current:16A
11. Power factor:≥0.99
12. Charging control: CAN or Enable
13. Size:198(length) x 244(width) x 95(height)(fan-cooled)
14. Weight only 4.6 kg!
15. Cooling way: Enforce Air Cooling

Safety protection:
1) Input over/under voltage and reverse polarity protection;
2) Output over current/short circuit and over temp protection.

Series Power Model Type of cooling Output voltage Output voltage range Output Current Output power
OBC 6.6KW HK-LW-108-64 Liquid Cooling 108V 70~177V 64A 6600W@220VAC 3300W@110VAC
OBC 6.6KW HK-LW-144-46 Liquid Cooling 144V 95~202V 46A 6600W@220VAC 3300W@110VAC
OBC 6.6KW HK-LW-312-20 Liquid Cooling 312V 200~450V 20A 6600W@220VAC 3300W@110VAC
OBC 6.6KW HK-LW-540-14 Liquid Cooling 540V 400~680V 14A 6600W@220VAC 3300W@110VAC
