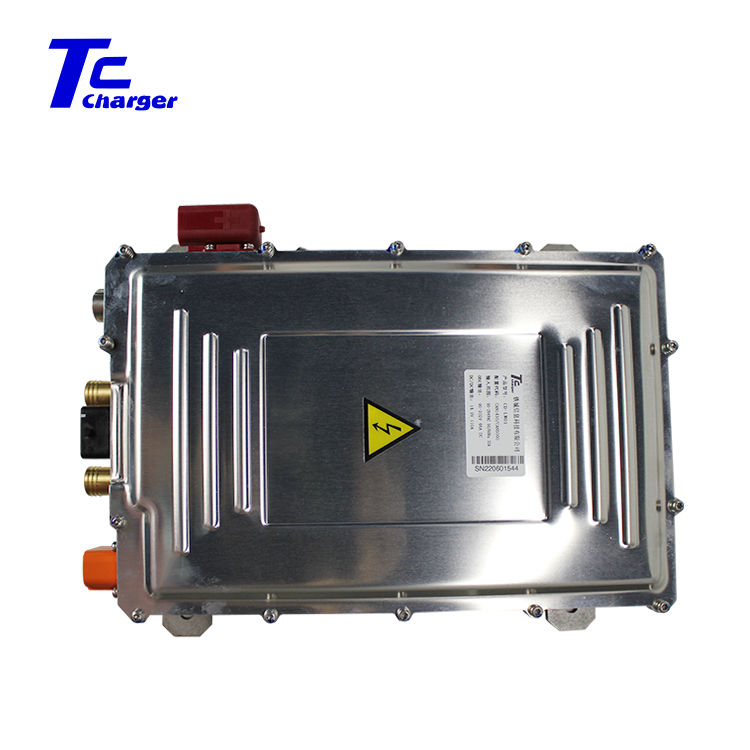

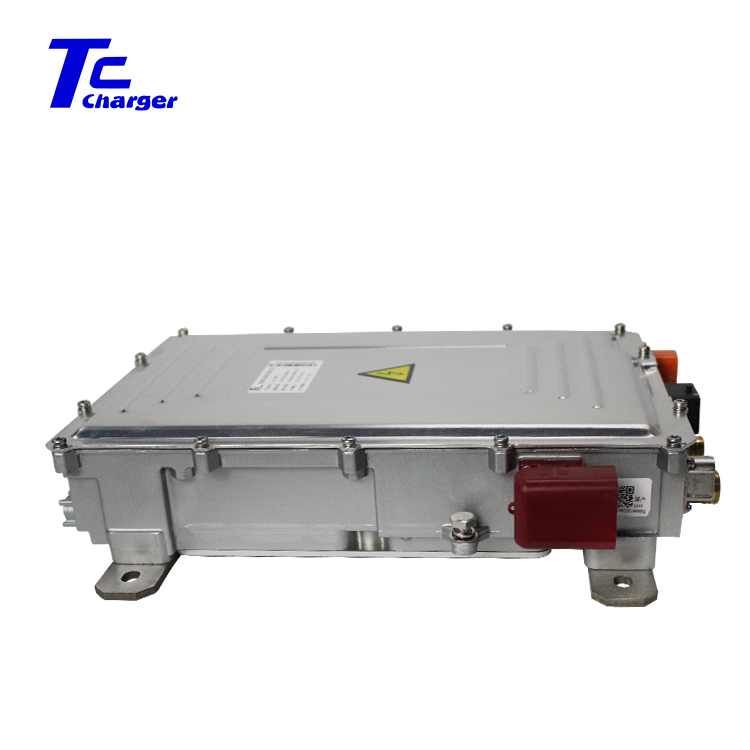

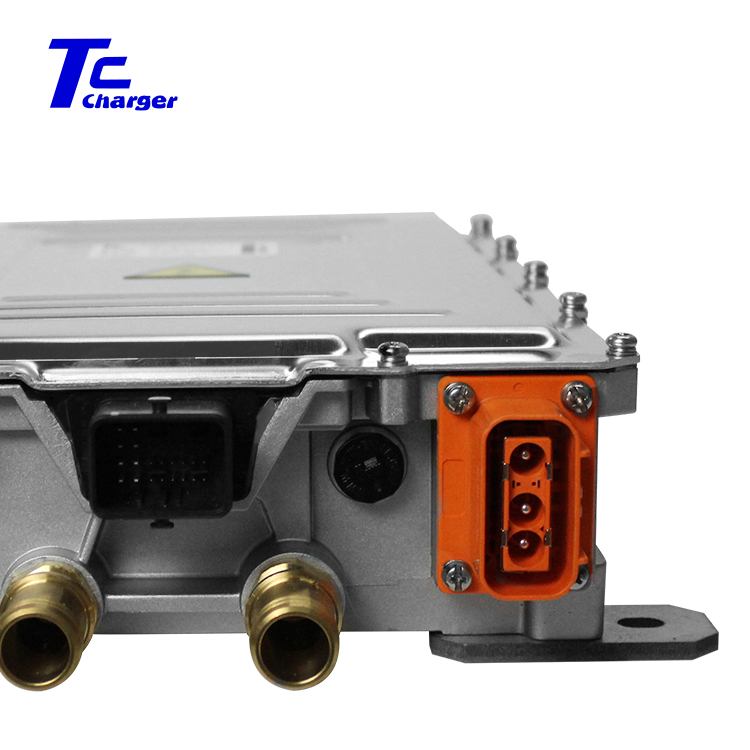

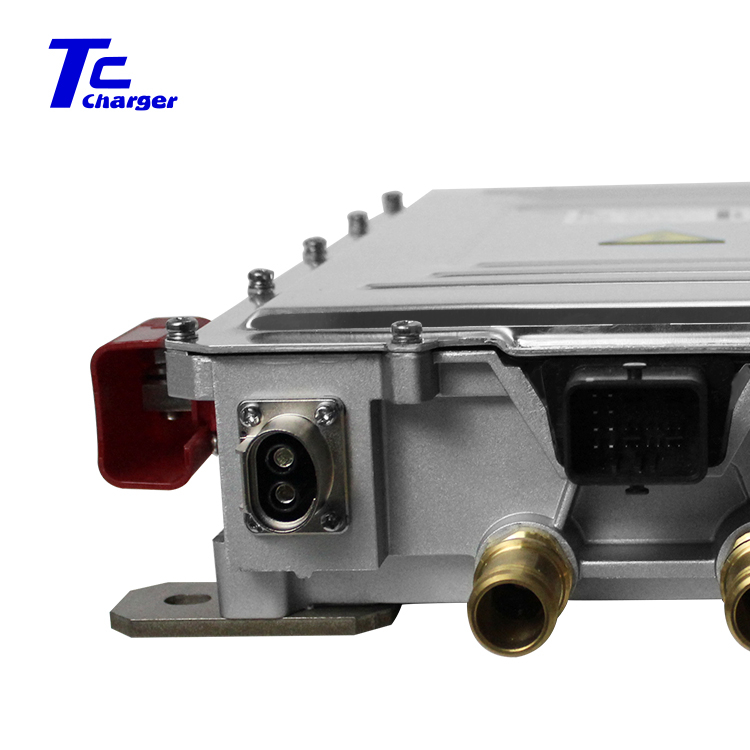

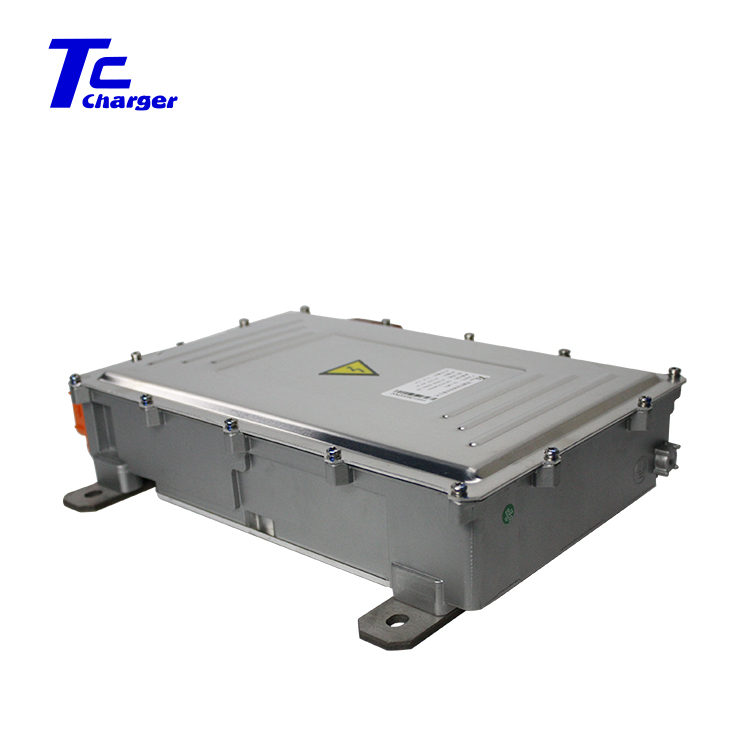

2 in 1 6.6+1.5KW CD-LW02(OBC+DC/DC)
$1,045.00 USD
$0.00 USD
Model
CD-LW02
VAC-DC Output Votage/VAC-DC Output Current
312V/20A
Output Voltage Range
200~450V
DC input Votage(V)
320V
Select Baud Rates
250K
500K
Quantity
Only 9998 left
Volume Pricing
Quantity
Price
1+
$1,045.00 USD each
Support Wholesale Customized
Worldwide Shipping
Carbon Neutral
Secure Payments

Basic Specification:

Accessories: According to different production batches, matching accessories may vary, and the actual product shall prevail!(Any questions please contact Fancy@tiechengcharger.com

1. Up to 95% power efficiency and more than 93% Full Load Efficiency
2. Wide input voltage range AC90V~AC264V 45~65 Hz available for worldwide requirements, convenient for electric-network fluctuation and vehicle exportation.
3. Intelligent temperature compensation function in the charging process, preventing damage to the battery caused by charge-off or charge due, greatly extending the lifespan of the battery.
4. Fully-sealed and water-proof, protection class IP67(Effective against dust tight and Protection against Immersion, up to 1 m depth).
5.Operation temperature:- 40℃~85℃;Storage temperature:- 55℃~85℃;Mechanical impact and vibration grade:QC/T 895-2011,Automotive-grade seismic rating.
6. Temperature control with the built-in heat-sensing device and automatic recovery through thermal protection.
7. Multi-safety protection functions.
8. LED charge status indication with diagnosing support function.
9. Available for various kinds of batteries like LiFePO4, Lithium battery, etc., Flexible and programmable in charging mode. Equipped with Enable Control(Automatic Control) or CAN communication interface to realize real-time communication with BMS for options.
10. Input current:32A
11. Power factor:≥0.99
12. Charging control: CAN or Enable
13. Size:250(length) x 222(width) x 66.7(height)(fan-cooled)
14. Cooling way: Liquid Cooling
Safety protection:
1) Input over/under voltage and reverse polarity protection;
2) Output over current/short circuit and over temp protection.

Model Output voltage VAC-DC model Power VAC-DC output votage (V) Output voltage range VAC-DC output current(A) DC-DC model DC-DC power Type of cooling DC input votage(V) DC input current(A) Max input current(A) DC-DC output votage (V) DC-DC output current(A)
CD-LW01 144V HK-LW-202-46 6.6KW 144V 95~202V 46 TDC-JH-144-12 1.5KW Liquid Cooling 144V 12 23 14 110A
CD-LW02 312V HK-LW-450-20 6.6KW 312V 200~450V 20 TDC-JH-320-12 1.5KW Liquid Cooling 320V 5.5 10 14 110A
