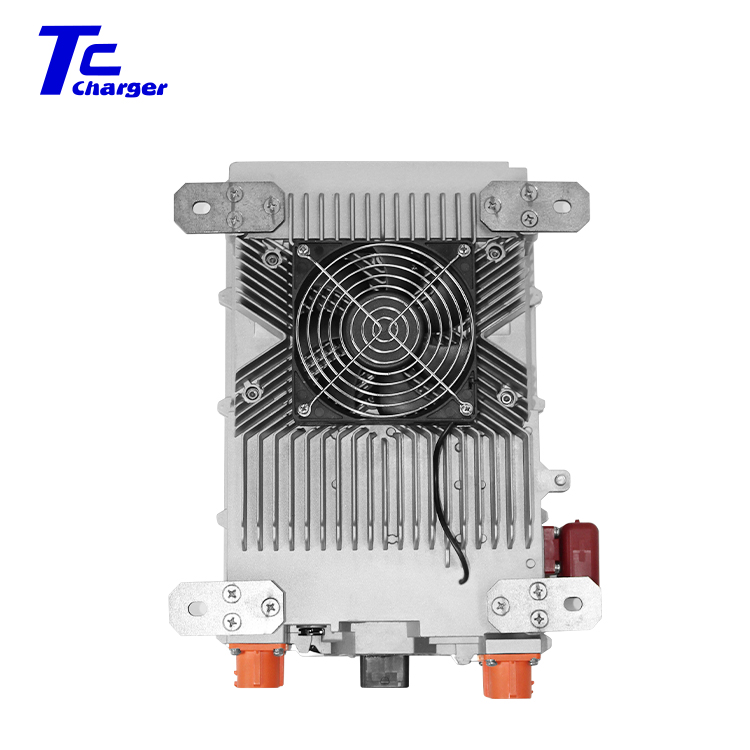

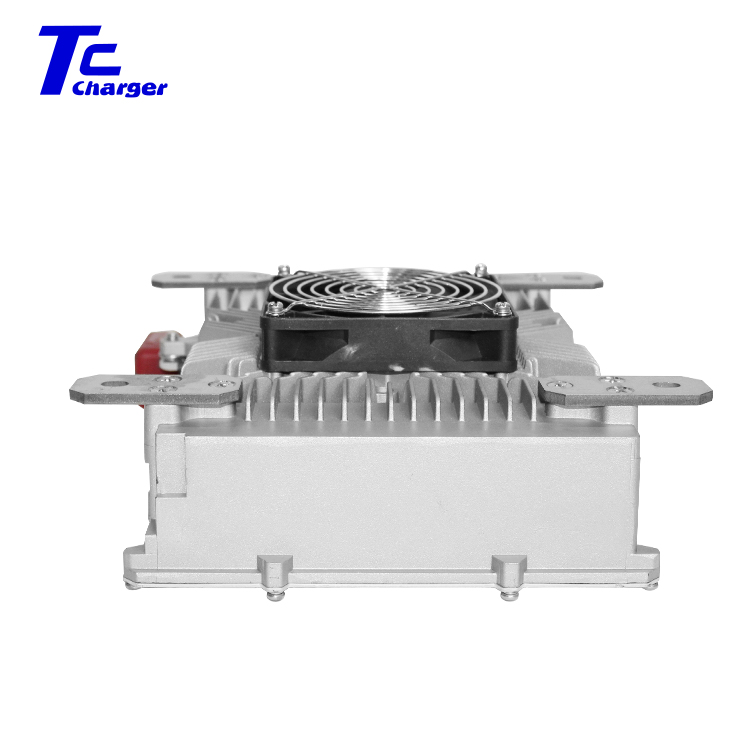

2 in 1 6.6+2KW CD-LFK02 (OBC+DC/DC)
Price Excluding Tax:
$1,130.00 USD
$0.00 USD
Model
CD-LFK02
VAC-DC Output Votage /VAC-DC Output Current
312V/20A
Output Voltage Range
200~450V
DC input Votage(V)
320V
Select Baud Rates
250K
500K
Quantity
Only 9999 left
Volume Pricing
Quantity
Price
1+
$1,130.00 USD each
Support Wholesale Customized
Worldwide Shipping
Carbon Neutral
Secure Payments

Basic Specification:

Accessories: According to different production batches, matching accessories may vary, and the actual product shall prevail!(Any questions please contact Fancy@tiechengcharger.com

Input voltage range: AC90V~265V
Input current:32A
Frequency:45Hz~65Hz
Power factor:≥0.99
Efficiency at full-loading :≥93%
Mechanical impact and vibration grade: QC/T 895-2011
Protection grade: IP67
Operation temperature:- 40℃~85℃
Storage temperature:- 55℃~85℃
Charging control: CAN or Enable
Size:250(length) x 222(width) x 66.7(height)(fan-cooled)
Protection: Output over-voltage, over-current, short-circuit, polarity reverse, input low-voltage, input over-voltage, over-temperature
Cooling way: Enforce Air Cooling

Model Output voltage VAC-DC model Power VAC-DC output votage (V) Output voltage range VAC-DC output current(A) DC-DC model DC-DC power Type of cooling DC input votage(V) DC input current(A) Max input current(A) DC-DC output votage (V) DC-DC output current(A)
CD-LFK01 144V HK-LF-202-46 6.6KW 144 95~202V 46 TDC-K-144-12 2KW Enforce Air Cooling  144V 15 25 14 143A
CD-LFK02 312V HK-LF-450-20 6.6KW 312 200~450V 20 TDC-K-320-12 2KW Enforce Air Cooling  320V 6.6 12 14 143A
