TC Charger 2 in 1 3.3KW+1KW 108V (80~161V) 32A Boat On Board Battery Charger DCDC

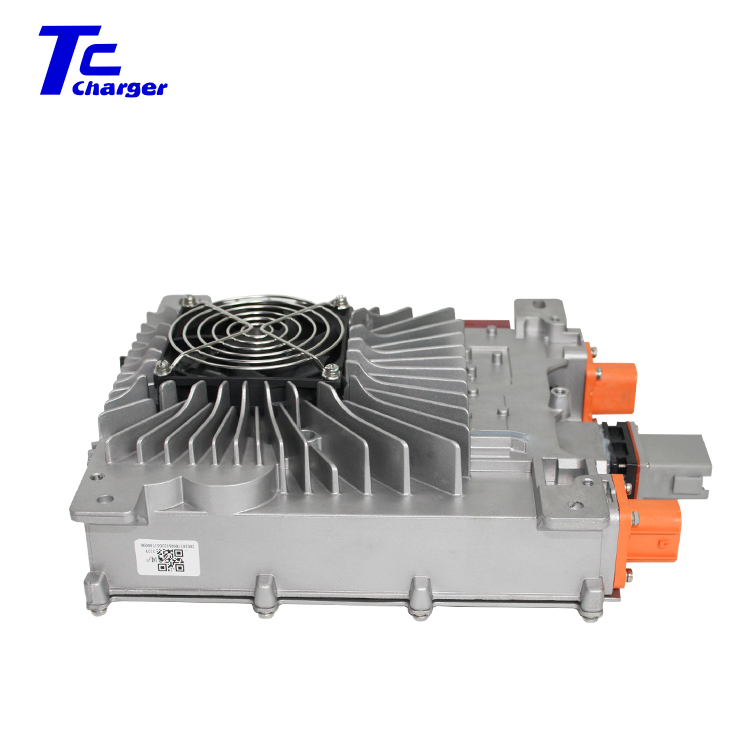

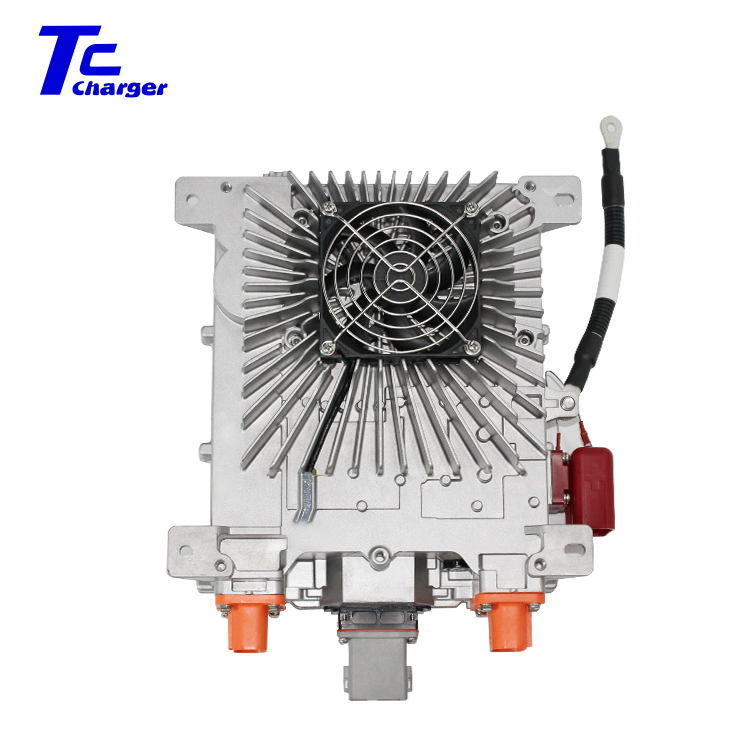

2 in 1 3.3+1KW CD-MF03 OBC+DC/DC-TC CHARGER
2 in 1 3.3+1KW CD-MF03 OBC+DC/DC-TC CHARGER
2 in 1 3.3+1KW CD-MF03 OBC+DC/DC-TC CHARGER
TC Charger 2 in 1 3.3KW+1KW 108V (80~161V) 32A Boat On Board Battery Charger DCDC
TC Charger 2 in 1 3.3KW+1KW 108V (80~161V) 32A Boat On Board Battery Charger DCDC
TC Charger 2 in 1 3.3KW+1KW 108V (80~161V) 32A Boat On Board Battery Charger DCDC
2 in 1 3.3+1KW CD-MF03 OBC+DC/DC-TC CHARGER
2 in 1 3.3+1KW CD-MF03 OBC+DC/DC-TC CHARGER
2 in 1 3.3+1KW CD-MF03 OBC+DC/DC-TC CHARGER
TC Charger 2 in 1 3.3KW+1KW 108V (80~161V) 32A Boat On Board Battery Charger DCDC
TC Charger 2 in 1 3.3KW+1KW 108V (80~161V) 32A Boat On Board Battery Charger DCDC
TC Charger 2 in 1 3.3KW+1KW 108V (80~161V) 32A Boat On Board Battery Charger DCDC
2 in 1 3.3+1KW CD-MF03 OBC+DC/DC-TC CHARGER
2 in 1 3.3+1KW CD-MF03 OBC+DC/DC-TC CHARGER
2 in 1 3.3+1KW CD-MF03 OBC+DC/DC-TC CHARGER
TC Charger 2 in 1 3.3KW+1KW 108V (80~161V) 32A Boat On Board Battery Charger DCDC
TC Charger 2 in 1 3.3KW+1KW 108V (80~161V) 32A Boat On Board Battery Charger DCDC
1/ 7

TC Charger 2 in 1 3.3KW+1KW 108V (80~161V) 32A Boat On Board Battery Charger DCDC

TC Charger 2 in 1 3.3KW+1KW 108V (80~161V) 32A Boat On Board Battery Charger DCDC

2 in 1 3.3KW+1KW CD-MF03(OBC+DC/DC)
$665.00 USD
$0.00 USD
Model
CD-MF03
VAC-DC Output Votage/VAC-DC Output Current
108V/32A
Output Voltage Range
80~161V
DC input Votage(V)
108
Select Baud Rates
250K
500K
Quantity
Only 10000 left
Volume Pricing
Quantity
Price
1+
$665.00 USD each
Support Wholesale Customized
Worldwide Shipping
Carbon Neutral
Secure Payments

Basic Specification:

Accessories: According to different production batches, matching accessories may vary, and the actual product shall prevail!(Any questions please contact Fancy@tiechengcharger.com

Input voltage range: AC90V~265V
Input current:16A
Frequency:45Hz~65Hz
Power factor:≥0.99
Efficiency at full-loading :≥93%
Mechanical impact and vibration grade: QC/T 895-2011
Protection grade: IP67
Operation temperature:- 40℃~85℃
Storage temperature:- 55℃~90℃
Charging control: CAN or Enable
Size:250(length) x 222(width) x 108.7(height)(fan-cooled)
Protection: Output over-voltage, over-current, short-circuit, polarity reverse, input low-voltage, input over-voltage, over-temperature
Cooling way: Enforce Air Cooling



Model Output voltage VAC-DC model Power VAC-DC output votage (V) Output voltage range VAC-DC output current(A) DC-DC model DC-DC power Type of cooling DC input votage(V) DC input current(A) Max input current(A) DC-DC output votage (V) DC-DC output current(A)
CD-MF01 72V HK-MF-72-40 3.3KW 72 50-107V 40A TDC-IY-72-12 1KW Enforce Air Cooling  72 14 23 14 72A
CD-MF03 108V HK-MF-108-32 3.3KW 108 80~161V 32A TDC-IY-108-12 1KW Enforce Air Cooling  108 10 17 14 72A
CD-MF04 144V HK-MF-144-23 3.3KW 144 95~202V 23A TDC-IY-144-12 1KW Enforce Air Cooling  144 8 13 14 72A
CD-MF05 312V HK-MF-312-10 3.3KW 312 200~450V 10A TDC-IY-320-12 1KW Enforce Air Cooling  320 3.5 6.2 14 72A

Sino-US Joint Venture Hangzhou Tiecheng Information Technology Co., Ltd was established in Dec, 1999, in Hangzhou, China. Tiecheng is a professional manufacturer with approximately 2100 square meters and has Research & Development, produce, sale and information service of their own. Depending on the internationally advanced technology, solid fund capability and years development, Tiecheng has successfully developed international standard hard, software products with high tech such as HF/PFC Battery Charger, DC/DC Converter and Battery Indicator etc, They are widely used in electric vehicles, forklifts, golf carts, electric tour, pallet trucks, electric boats, cleaning equipment and UPS (uninterruptible power supplies), solar power, wind power and Communication rail system and other communication industries and fields. With excellent quality, good reputation and perfect after-sales service, Tiecheng has been trusted and recommended by worldwide customers and exported products to 30 of countries all over the world.

DEVELOPMENT HISTORY

Develop with Responsibility
Win the World with Reputation
Exploration and Innovation
Forge Ahead

OUR HONOR

2 patents of Technology invention
16 patents for utility models
15 patents of appearance
15 patents of software copy right

QUALITY CONTROL

TIECHENG Technology aims to provide complete product solutions and complete product cycle services for all usersline

DEVELOP ABILITY

◎ Equipped with all R&D talents and intellectual property about development, design, components selection, software platform built, EMC certification, process structure customized design, etc in the NEV field.
◎ Equipped with professional lab, containing the electrical test, reliability test, safety, and regulation, compatibility test with the vehicle, to ensure the high quality of TC products
◎ Completed test capabilityA sentence or two introducing your brand, what you sell, and what makes your brand compelling to customers.

Research Goal

Innovation has always been the concept that TIECHENG adheres to, realizing the lightweight, high density and high integration of products is not only the demand of current but also for future industries, TIECHENG is committed to creating value for customers, promoting the benign development of the industry, promoting economic growth, and promoting the sustainable development of society while dedicated to making progress in products and technology.

FAQS

Q: Are you trading company or manufacturer ?
TC chargerA: We are manufacturer.
Q: How long is your delivery time?
TC chargerA: Generally it is 7-15 days if the goods are in stock. or it will take 60 days if the goods are not in stock, it is according to quantity.
Q: What is the your sample policy?
TC chargerA: we can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q: What is your terms of delivery?
TC chargerA: FOB,CFR,CIF.
Q: What is your terms of payment ?
TC chargerA: Payment<=15000USD, 100% in advance. Payment>=15000USD, 50% T/T in advance ,balance before shippment.
