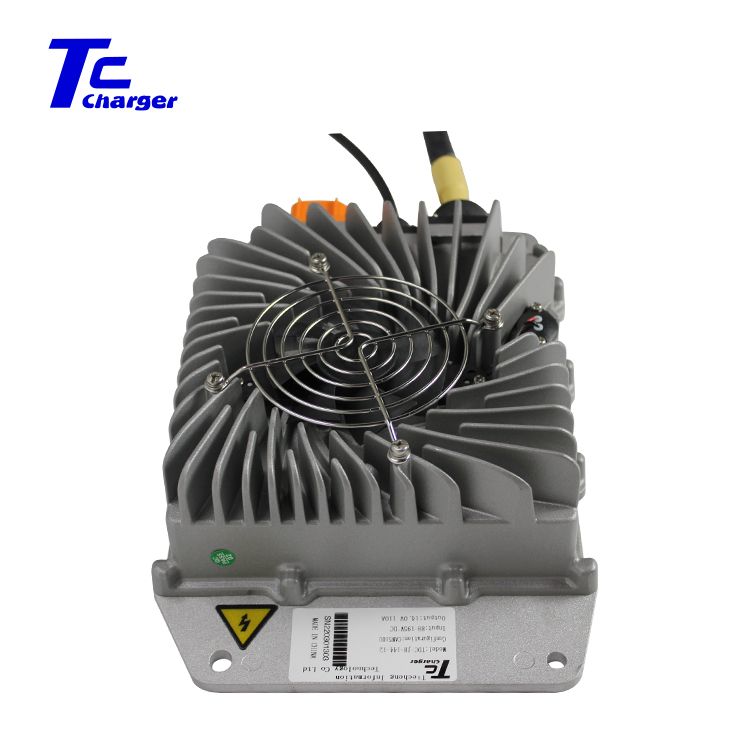

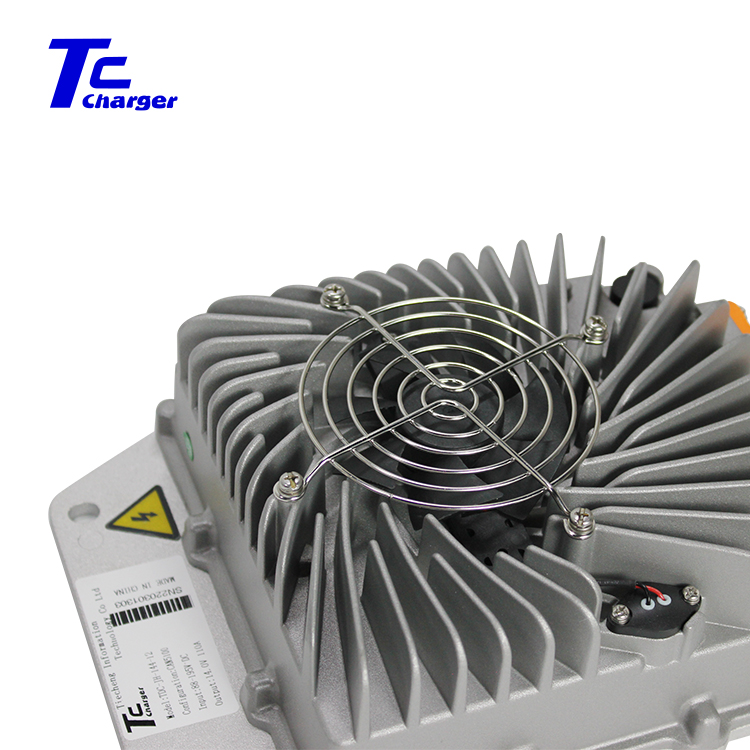

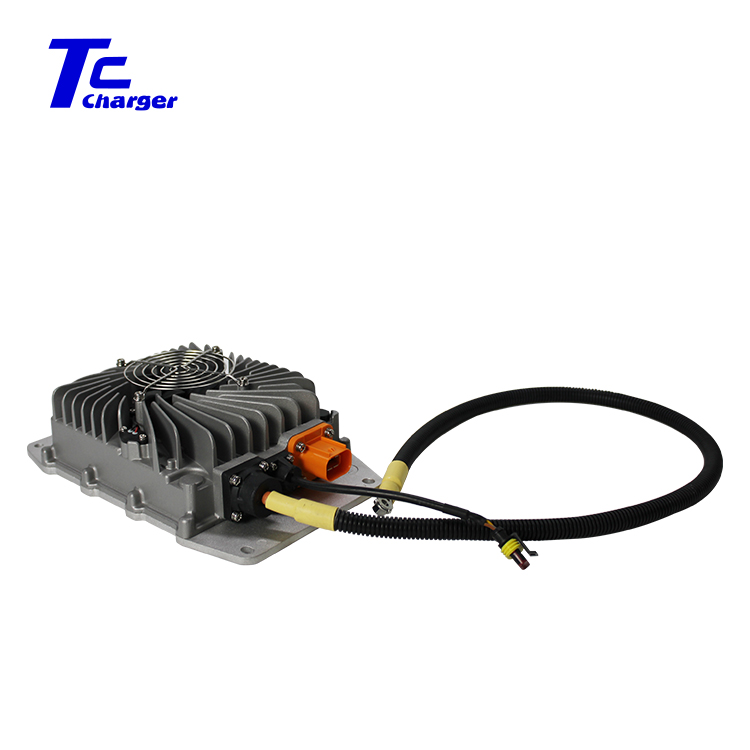

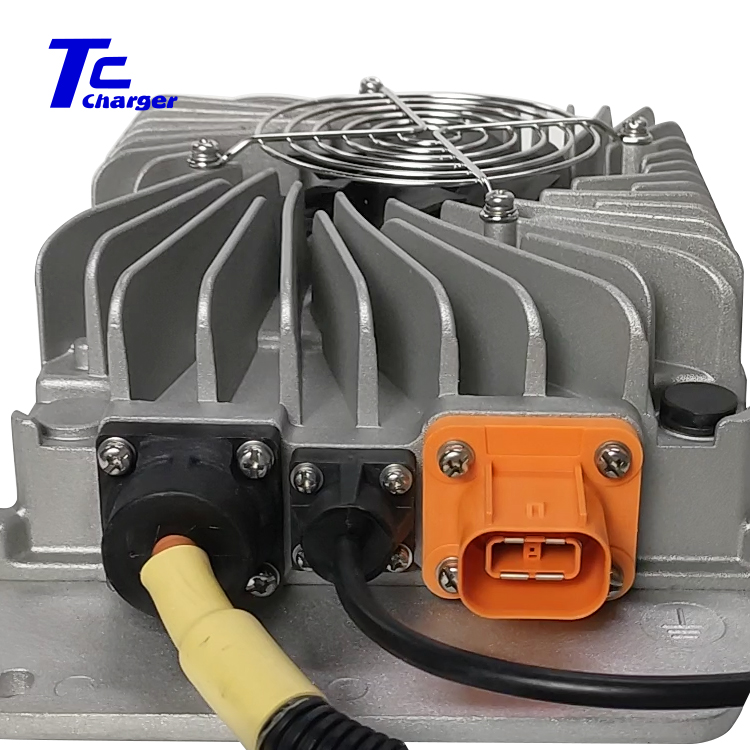

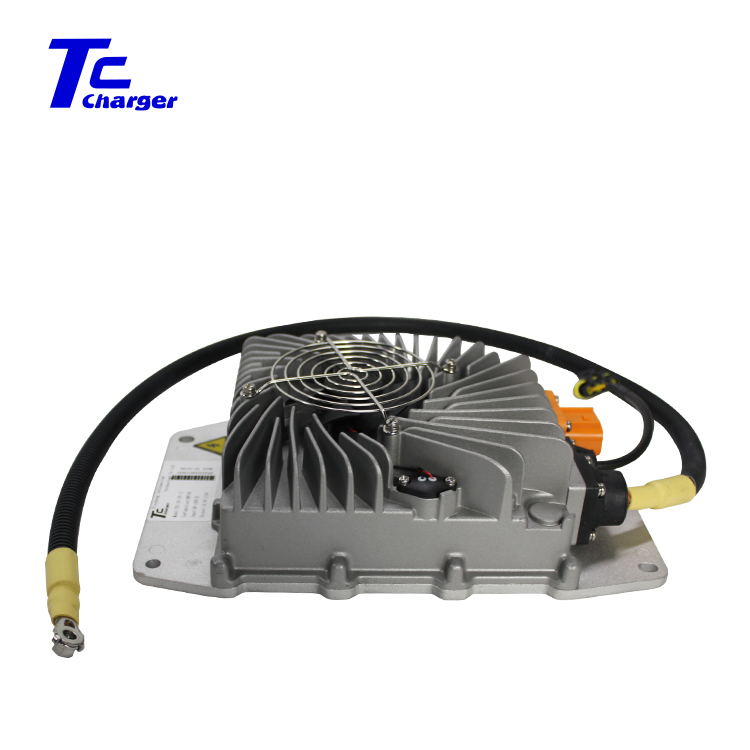

1.5KW TDC-JH-108-12 Enforce Air Cooling DC/DC
Price Excluding Tax:
$290.00 USD
$0.00 USD
Model
TDC-JH-108-12
Output Voltage/Output Current
14V/110A
Output Voltage Range
9-15V
DC input Votage(V)
96/108
Select Baud Rates
250K
500K
Quantity
Only 10000 left
Volume Pricing
Quantity
Price
1+
$290.00 USD each
Support Wholesale Customized
Worldwide Shipping
Carbon Neutral
Secure Payments

Basic Specification:

Accessories: According to different production batches, matching accessories may vary, and the actual product shall prevail!(Any questions please contact Fancy@tiechengcharger.com

1. Nominal power:1.5KW
2.Peak power:1.8KW continuous with 6mins
3. Output voltage and current:13.8V±1%, 110A
4. Efficiency at full loading:≥92%
5. Voltage regulatory:1%
6. Voltage stabilized accuracy:≤1%
7. Current stabilized accuracy:≤2%
8. EMC: meet GB/T 18655-2002
9. Protection grade: IP67
10. Operation temperature:- 40℃~60℃
11. Storage temperature:- 40℃~105℃
12. Control: CAN or Enable
13. Size:45.5(length)x26.1(width)x15.5(height)(Enforce Air Cooling)
14. N.W.:2.3kg
15. Cooling way: Enforce Air Cooling

Safety protection:
Output over-voltage, output low-voltage, short-circuit, input polarity reverse, over-temperature, communication error

Series Power Model Type of cooling Output voltage Output voltage range Output Current DC input votage(V) DC input current(A) Max input current(A)
DC/DC 1.5KW TDC-JH-72-12 Enforce Air Cooling 14V 9-15V 110A 72 23 46
DC/DC 1.5KW TDC-JH-108-12 Enforce Air Cooling 14V 9-15V 110A 96/108 15.5 30
DC/DC 1.5KW TDC-JH-144-12 Enforce Air Cooling 14V 9-15V 110A 144 12 23
DC/DC 1.5KW TDC-JH-320-12 Enforce Air Cooling 14V 9-15V 110A 320 5.5 10
