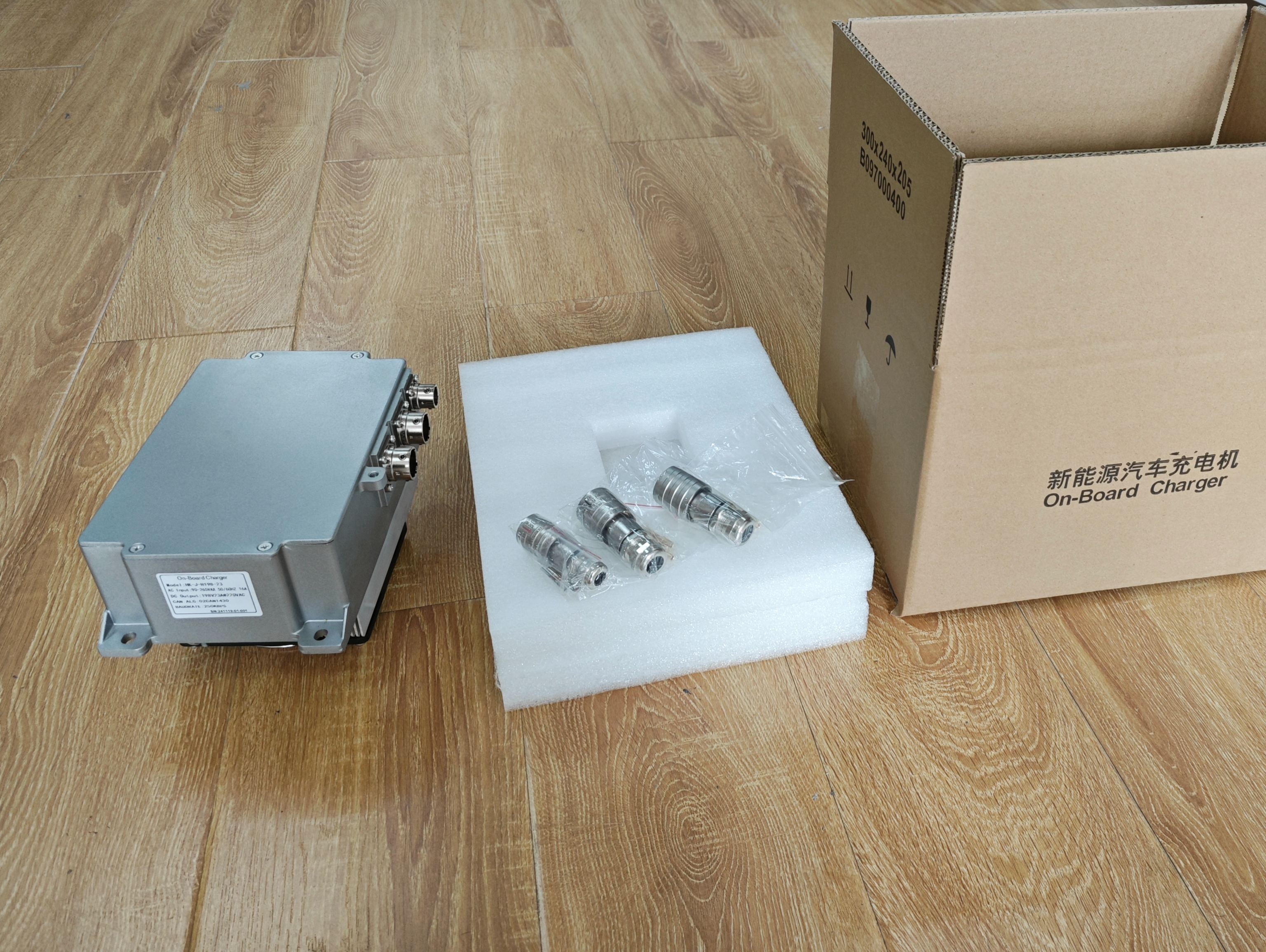

Notes: According to different production batches, matching accessories may vary, and the actual product shall prevail! （If you have any questions please contact Fancy@tiechengcharger.com）

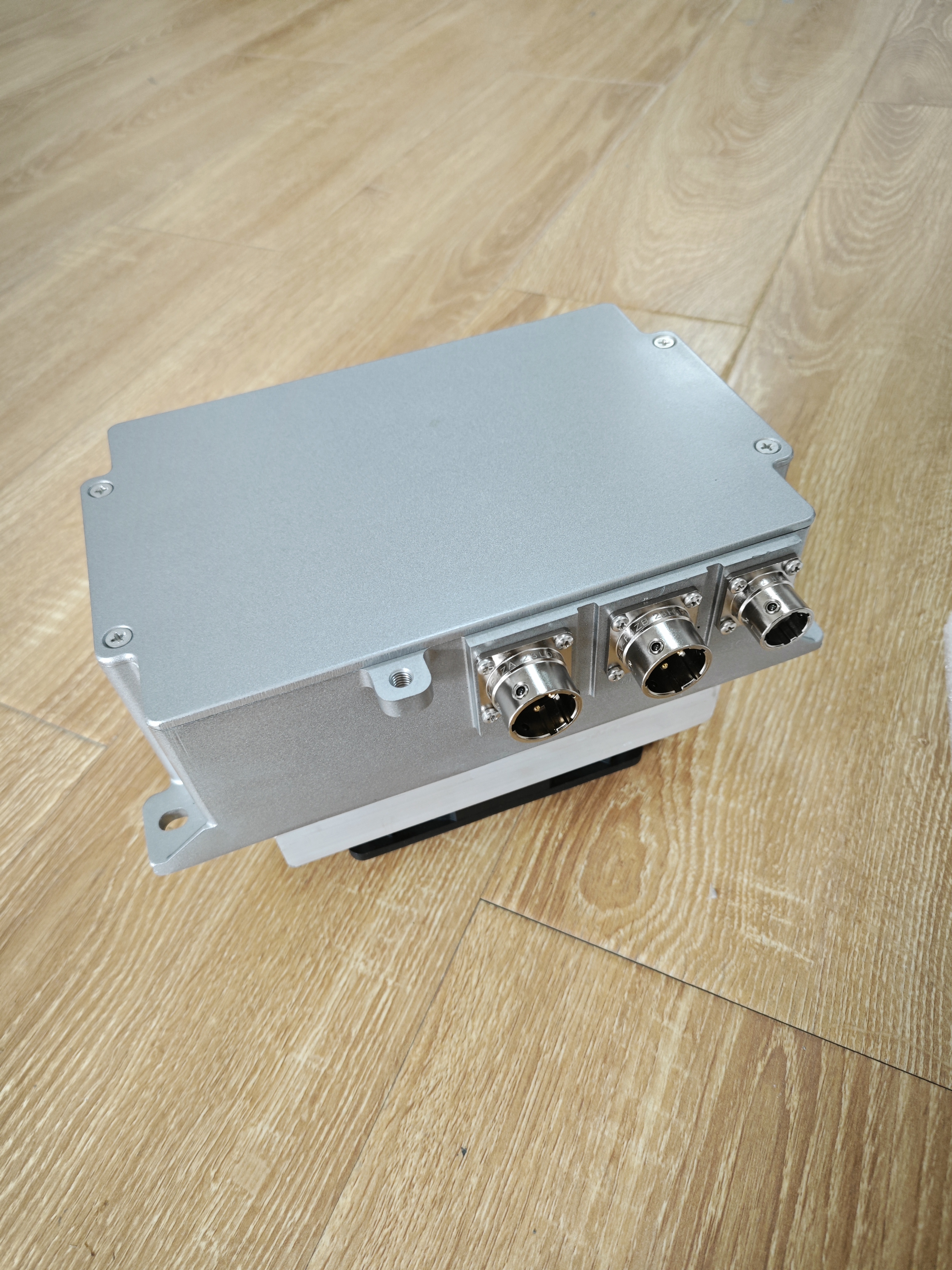

HK-J series 3.3KW charger was specially designed, for supplying the electricity for electric vehicle’s power battery, on the basis of the national standards for the charger. This product has the advantages of not only high efficiency, small size, high stability, long lifespan, but also high protection grade, and high reliability and complete protection function, etc. It’s definitely an ideal charging power supply for f electric vehicles.
This charger has built-in heat-sensing device and can automatic recover through the thermal protection. Fully sealed potting process and up to IP67 protection level ensures no causing trouble in any complex environment.
Main Feature:

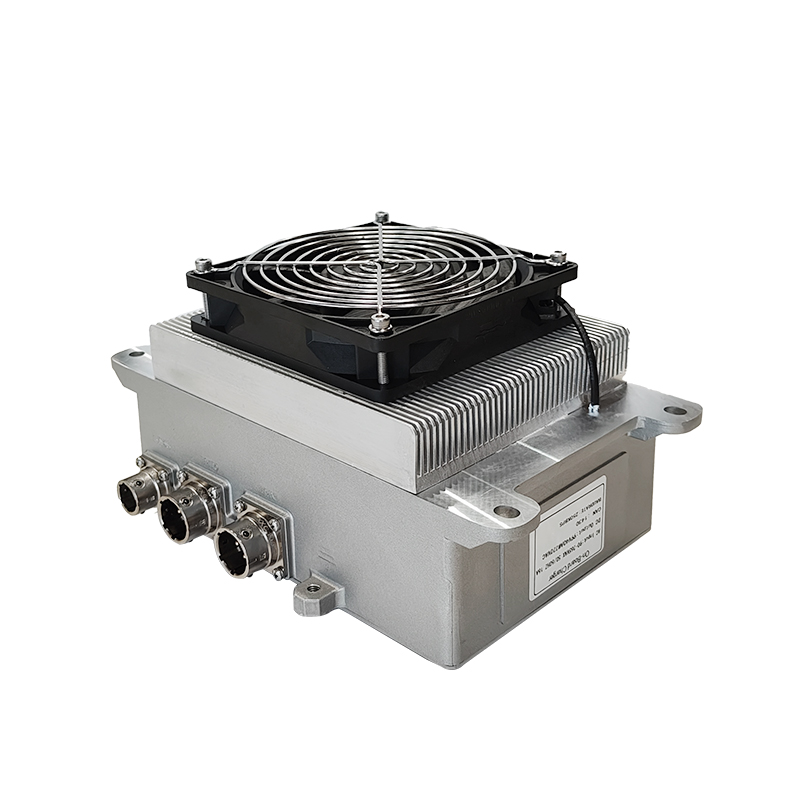

Fully Sealed, Enforce air Cooling/Liquid Cooling（Module Optional）
Reliable working under -35℃- +85℃ Internal temperature sensor
Shut off inside temperature over 90°C IP67 Protection Level
Working well in immersion shortly
Basic Specification:
| Items | Data | |
| Input | AC Input Range | AC 90~265V |
| Frequency | 45-65Hz | |
| Input Current | ≤16A | |
| Power Factor | ≥0.99 Half loading | |
| Efficiency | ≥93% Full loading | |
| Standby Consumption | ≤10W | |
| Main Output | Output Mode | CV / CC |
| Output Voltage | 3300W @ 220VAC | |
| CV Accuracy | ±1% | |
| CC Accuracy | ±2% | |
| Ripple Voltage Coefficient | 5% | |
| Low Voltage Output | Output Mode | CV |
| Output Voltage | 13.8V/27.6V | |
| CV Accuracy | ±1% | |
| Nominal Current | 5A | |
| Max Current | 5.5A±0.5A | |
| CC Accuracy | ±2% | |
| Ripple Voltage Coefficient | 1% | |
| CAN Communication | CAN Communication | Optional |
| Baud Rate | 250Kbps、500Kbps | |
| Terminal Resistance | NO |
