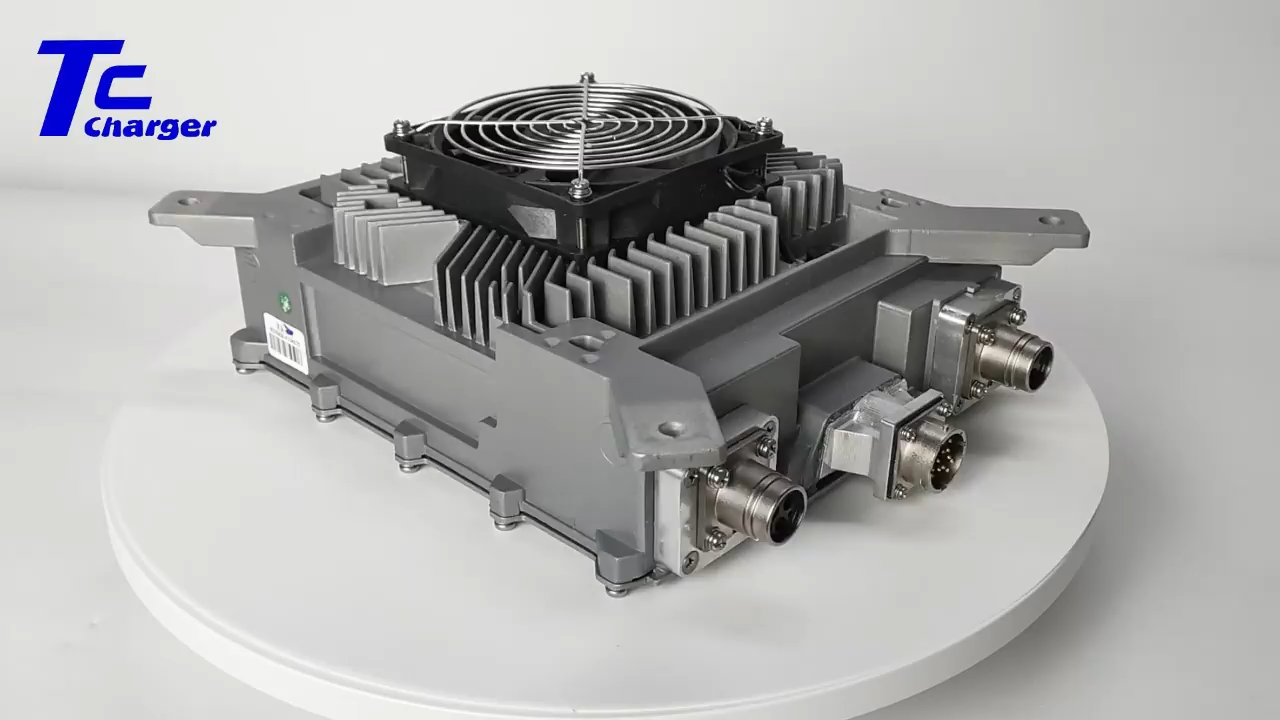

4th Generation 6.6KW HK-LF-115-58 EV AC Charger OBC
$900.00 USD
$0.00 USD
Model
HK-LF-115-58
Output Voltage/Output Current
108V/58A
Output Voltage Range
70~177V
Output Power
6600W@220VAC 3300W@110VAC
Select Baud Rates
250K
500K
Quantity
Only 9991 left
Volume Pricing
Quantity
Price
1+
$900.00 USD each
Support Wholesale Customized
Worldwide Shipping
Carbon Neutral
Secure Payments

Basic Specification:

Accessories: According to different production batches, matching accessories may vary, and the actual product shall prevail!(Any questions please contact Fancy@tiechengcharger.com

1. Up to 95% power efficiency and more than 93% Full Load efficiency
2. Wide input voltage range AC90V~AC264V 45~65 Hz available for worldwide requirements, convenient for electric-network fluctuation and vehicles exportation.
3. Intelligent temperature compensation function in the charging process, preventing the damage to battery caused by charge-off or charge due, greatly extending the lifespan of battery.
4. Fully-sealed and water-proof, protection class IP67(Effective against dust tight and Protection against Immersion, up to 1 m depth).
5.Operation temperature:- 40℃~85℃;Storage temperature:- 55℃~85℃;Mechanical impact and vibration grade:QC/T 895-2011,Automotive-grade seismic rating.
6. Temperature control with built-in heat-sensing device and automatic recover through the thermal protection.
7. Multi-safety protection functions.
8. LED charge status indication with diagnose support function.
9. Available for various kinds batteries like LiFePO4, Lithium battery etc., Flexible and programmable of the charging mode. Equipped with Enable Control(Automatic Control) or CAN communication interface to realize real-time communication with BMS for options.
10.Input current:16A
11.Power factor:≥0.99
12.Charging control: CAN or Enable
13.Size:198(length) x 244(width) x 95(height)(fan-cooled)
14.Weight only 7.6 kg!
15.Cooling way: Enforce Air Cooling

Safety protections:
1) Input over/under voltage and reverse polarity protection;
2) Output over current / short circuit and over temp protection.
